Brownings Nacelles Internal items

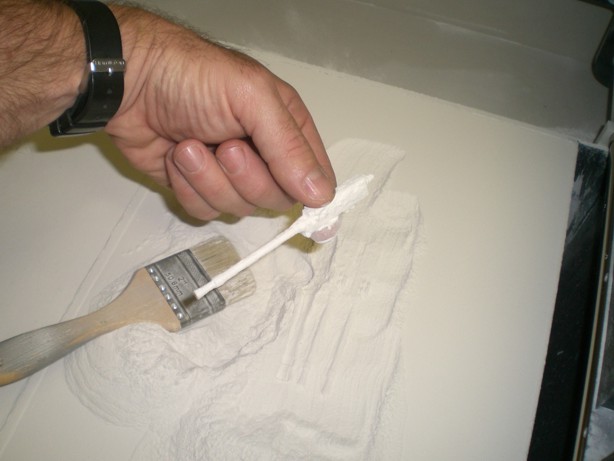

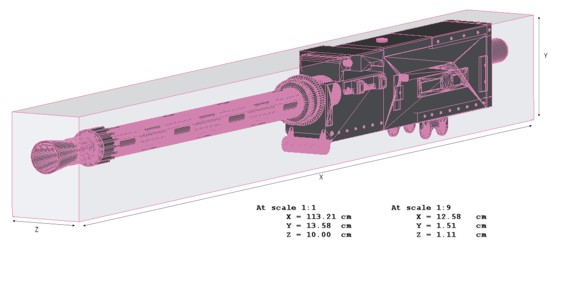

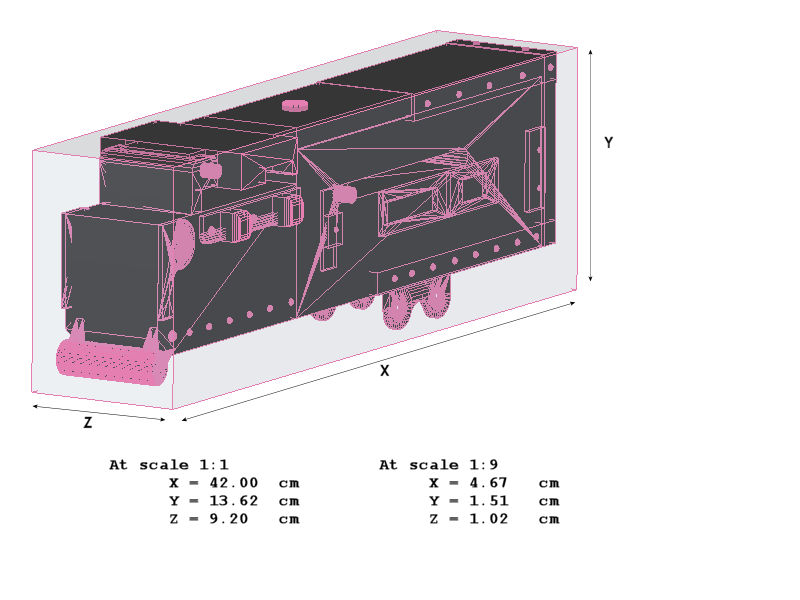

Have been emailing with a firm in the States, Arizona Models, Jamie will be letting me know hopefully next week on the cost of making them, they are looking at makeing the barrels and the block from laser printing resin. For them to make them Mike Houlder kindly made me the 3D CAD drawings needed

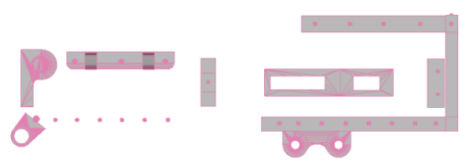

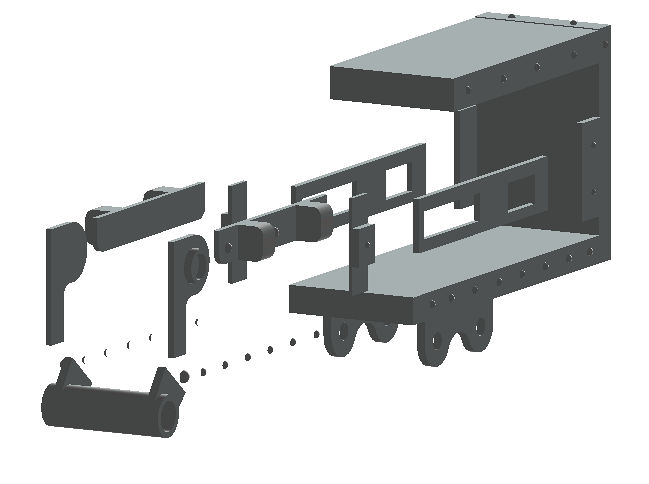

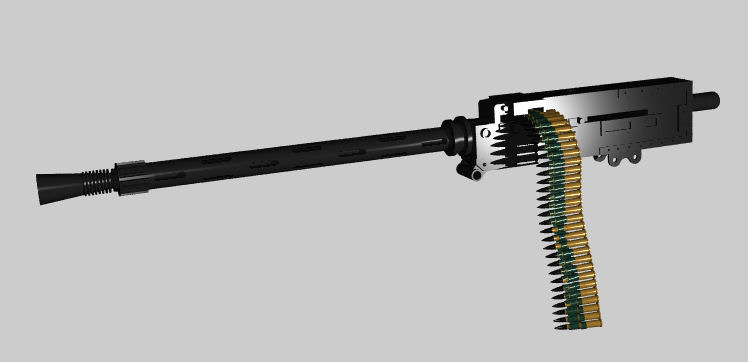

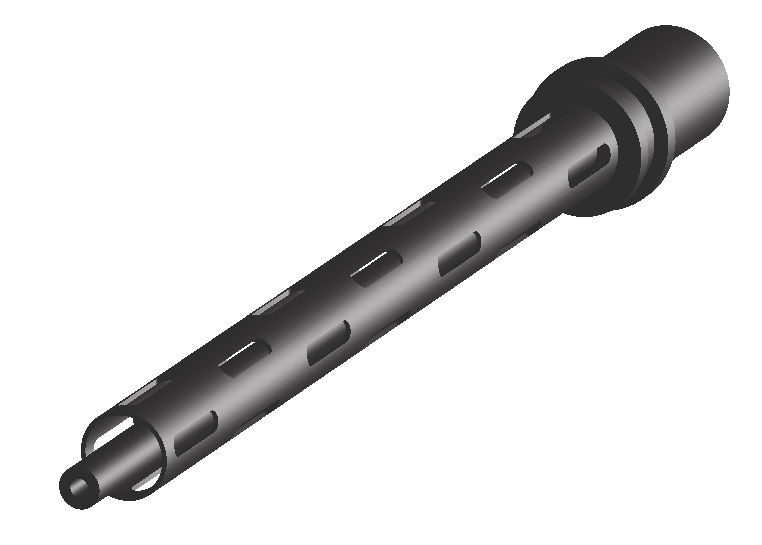

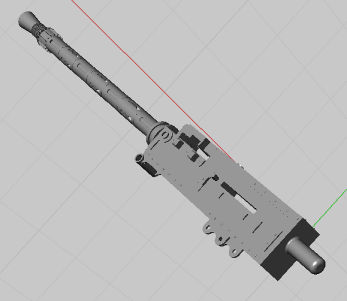

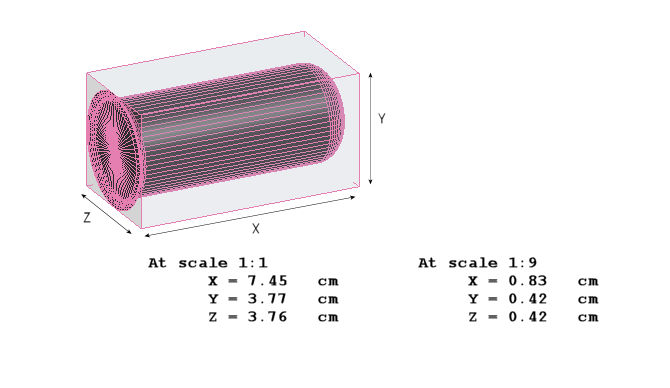

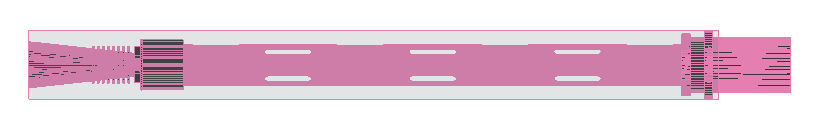

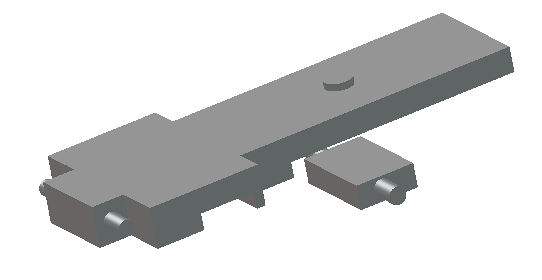

Mike Houlders great work in the 3D drawings i needed in CAD

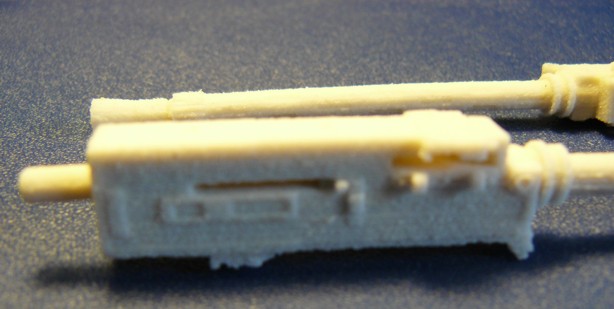

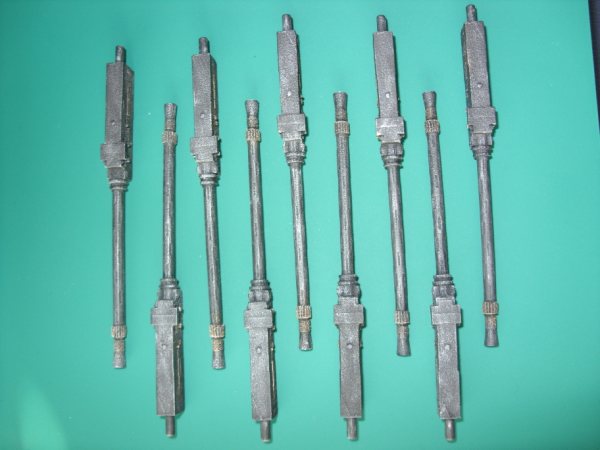

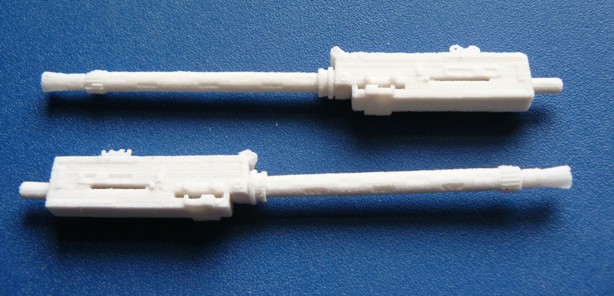

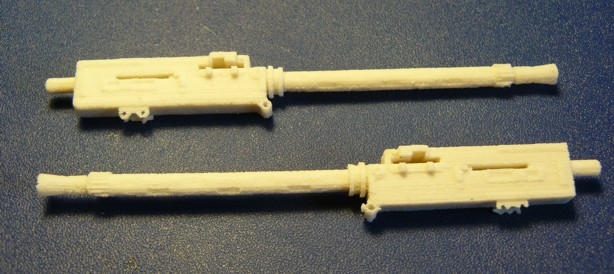

Had a couple of photo's sent by Jamie who is making the 303's for me. he does have a lot to offer the modeler. The photo's dont really do them justice, they are VERY detailed and worth every penny of the $37 each they cost (Note since publication the cost per item may have risen), Jamie added a couple of spares into the deal.

I am very pleased with then I only wish i'd found his site sooner would have saved 8 months searching and being let down. two english firms let me down, these are from the USA!! Jamies web site Arizona Models its well worth looking round.
I must add here a very big thank you to Mike Houlder for the 3D CAD drawings

Ian Collis the builder of Lt Heinz Grimm's Bf110 (and also the Bomb aimers and front nose gun) offered to paint the 303’s for me knowing he’ll do a lot better job than I could. I didn’t refuse ( a decent bottle of scotch is on order Ian)

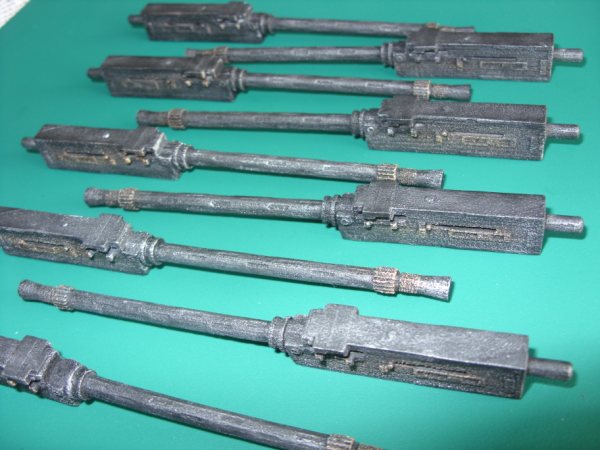

“Getting the effect with the guns is by painting two layers of that gunmetal spray, then two coats of thinned down black over the gunmetal ,then a 'dry brushing' of 56 aluminium, then a slight 'dry brushing' of brass around the end of the gun barrel and in the middle of the stock and painting the inside of the muzzle matt black.”

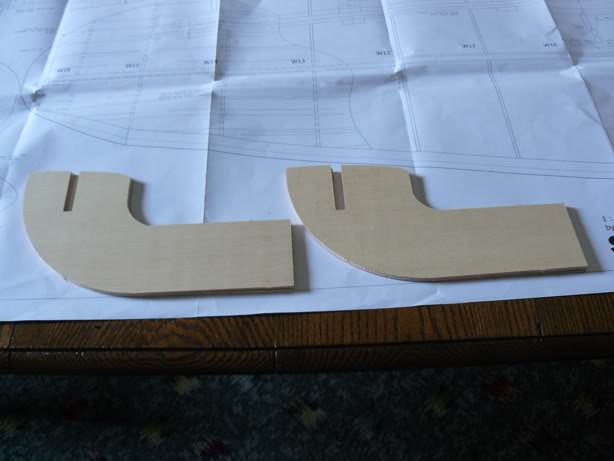

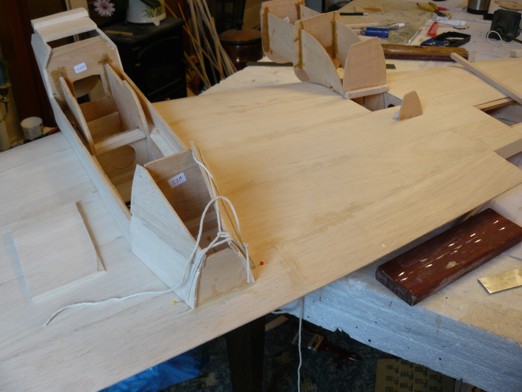

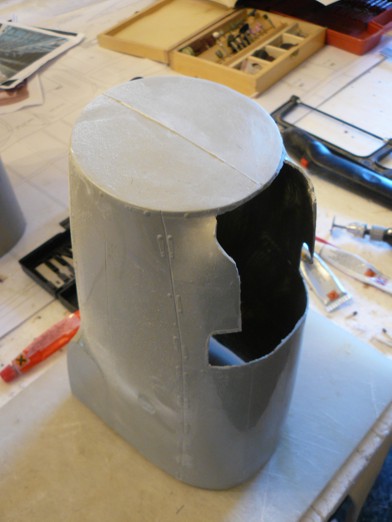

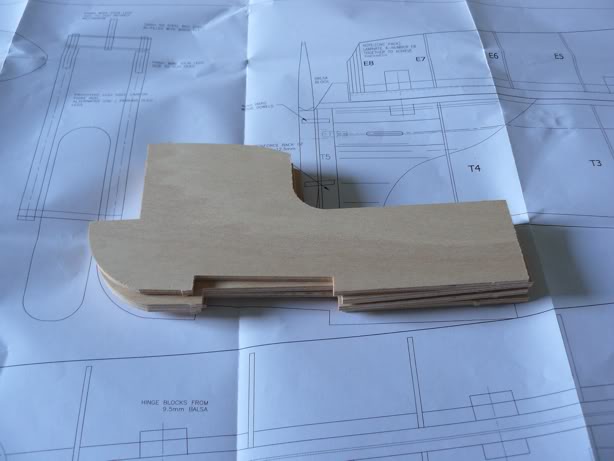

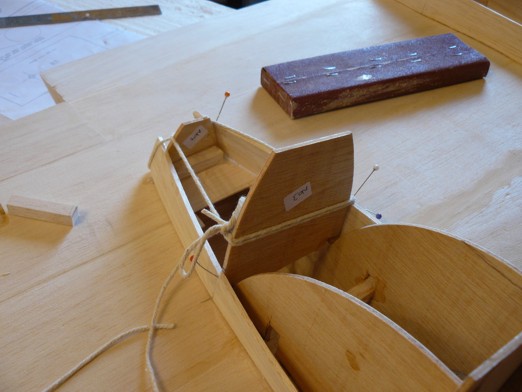

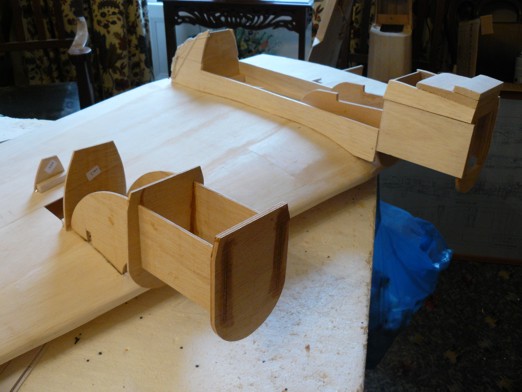

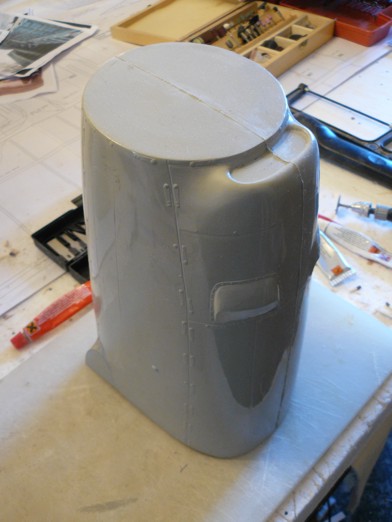

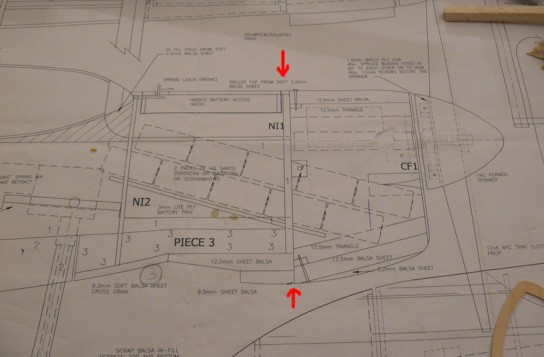

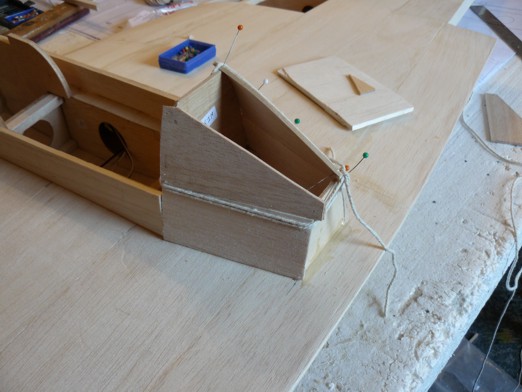

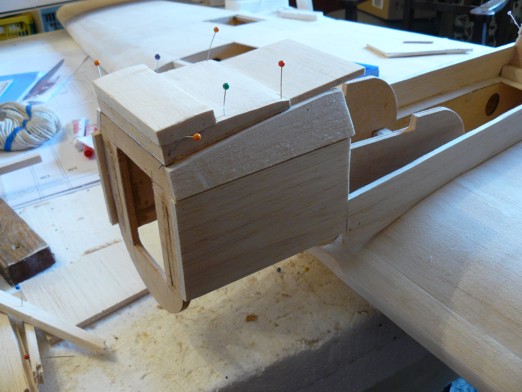

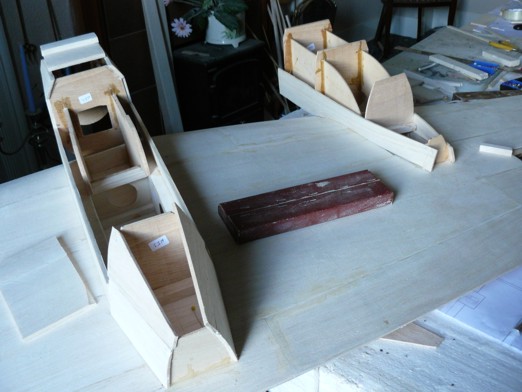

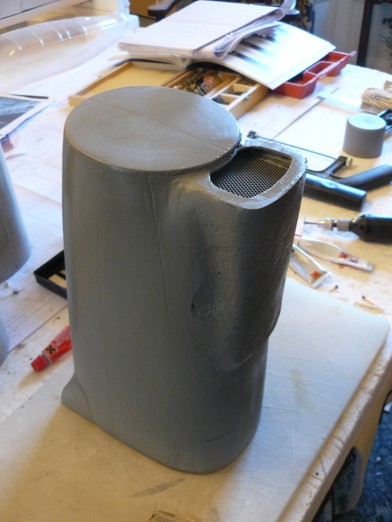

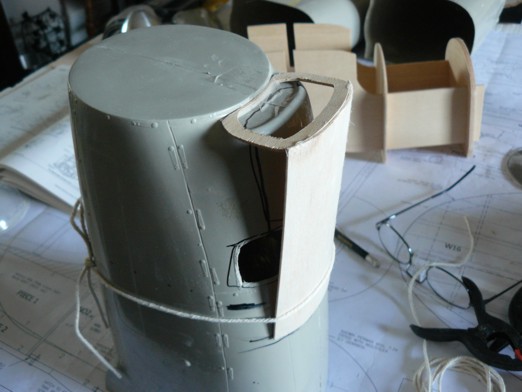

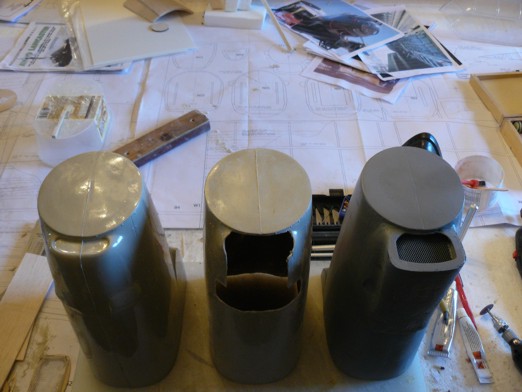

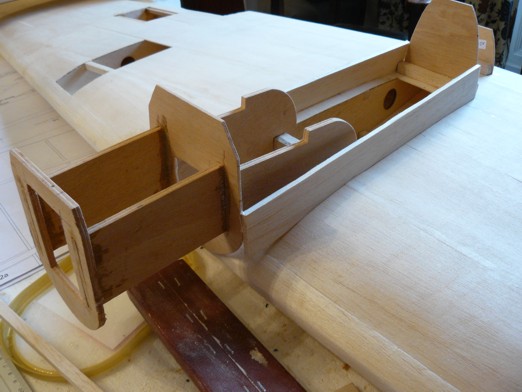

Building of the nacelles was straight forward, but , the cowling cover I knew was going to be difficult..

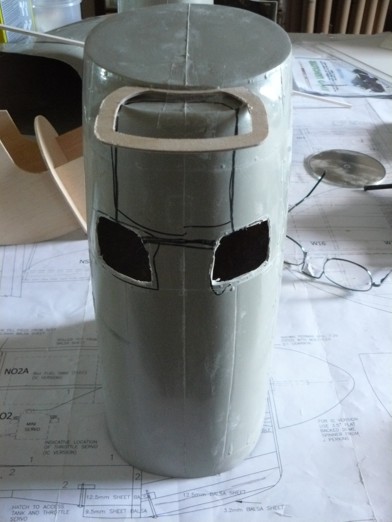

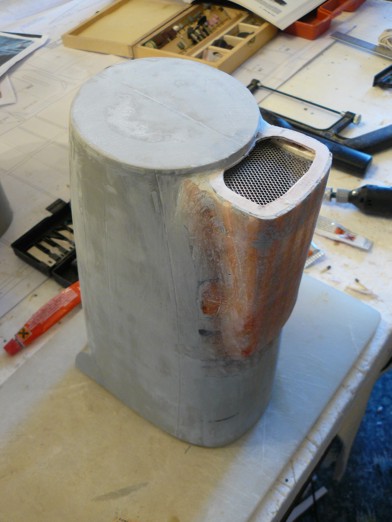

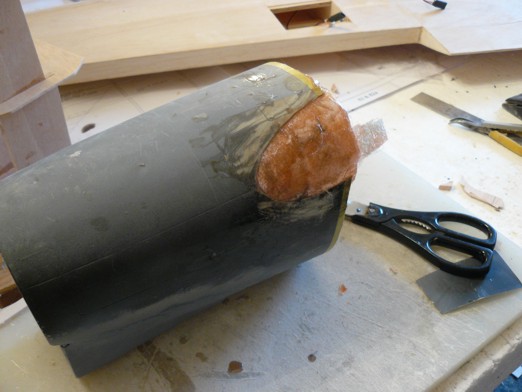

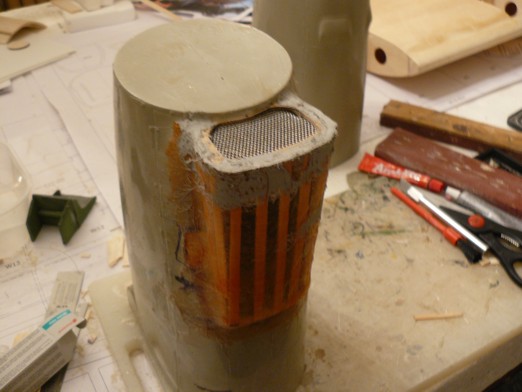

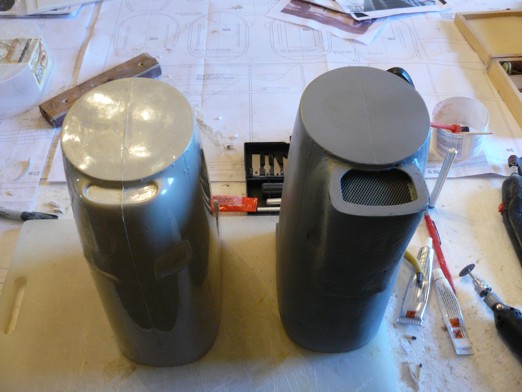

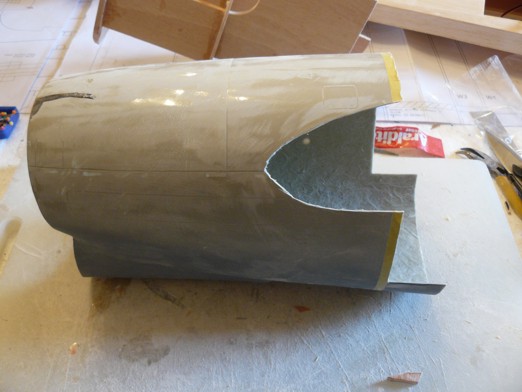

I managed to find four covers, but these were for a Spitfire, so I had to alter them slightly

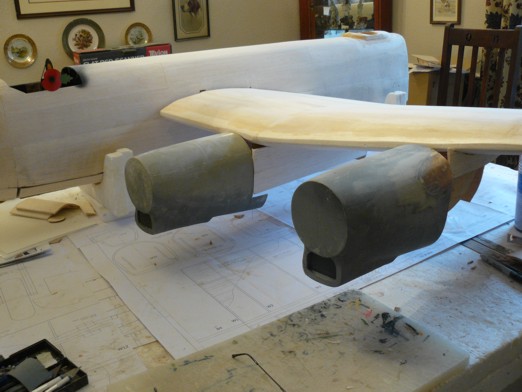

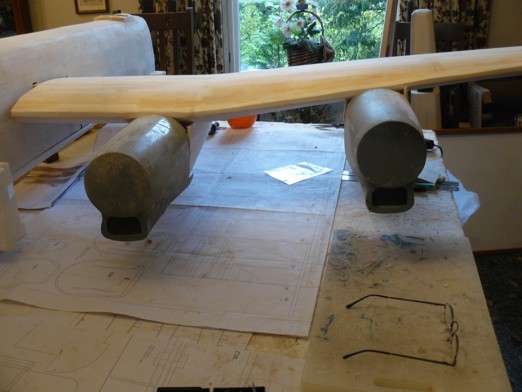

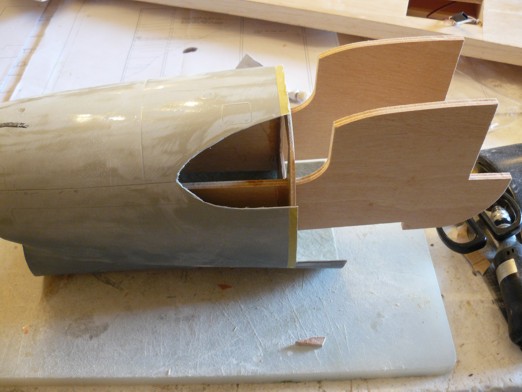

test fitting onto the wing, the cowling will be fixed by four small screws, the cover it self is quite a tight fit

Pilots Seat

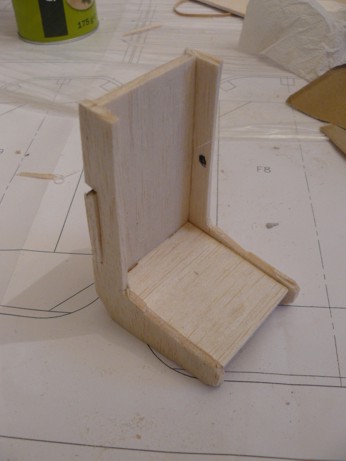

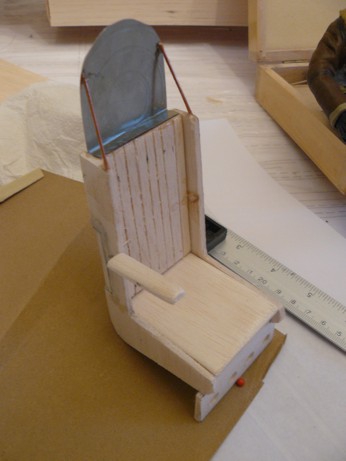

Working from a certain model Lancaster in weekly parts ... I re-sized the scale to 1:9 and then used as a template for the pilots seat

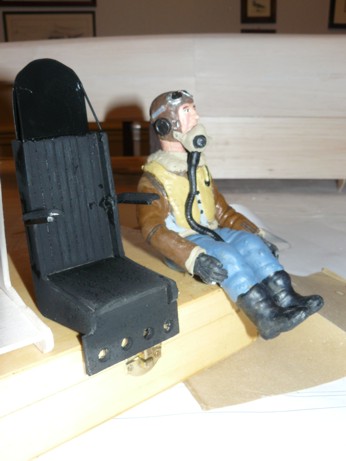

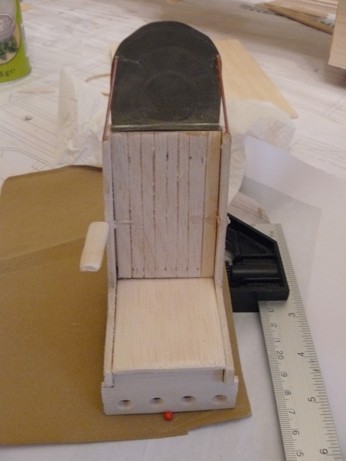

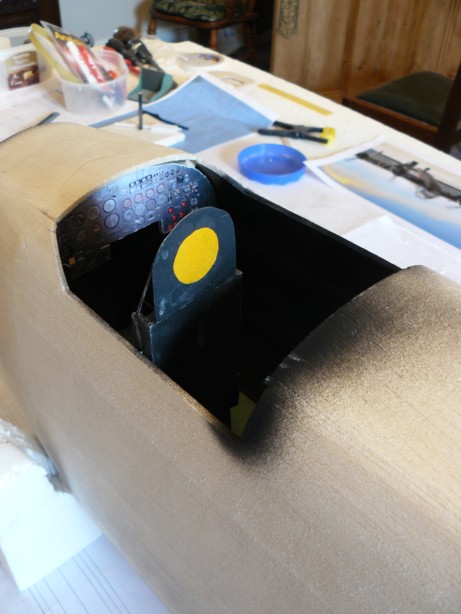

As the draft seemed to look OK and the figure fitted!! ( to my surprise!!) i got it right!!!.... started on the final version.. left arm rest still to fit slight mishap with the hole for the wire for the rest quick spray mat black before final paint. repainted the yellow spot as i had it too low.

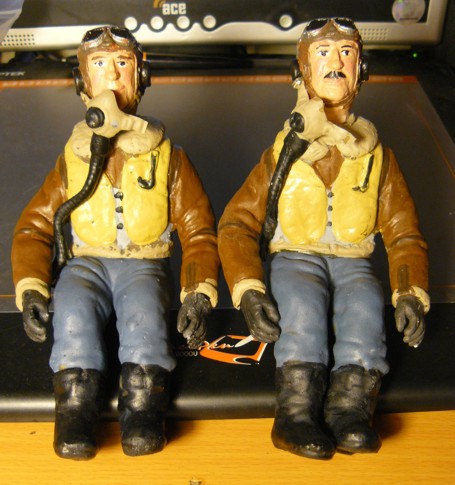

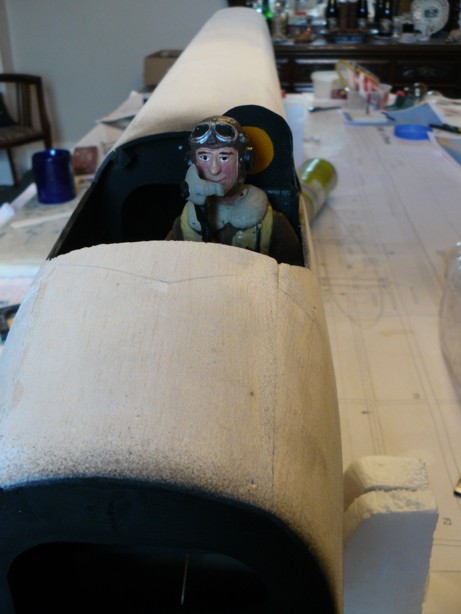

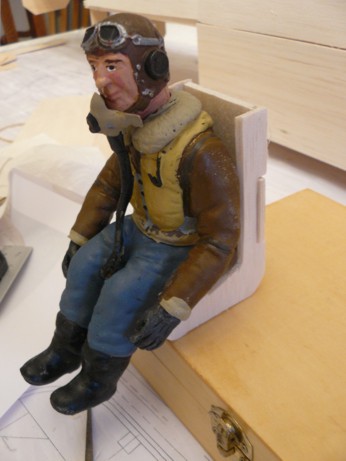

The figures were a lucky find, local model shop, they were for a large scale mosquito but the guy who ordered them never returned, my lucky find!, ideal for pilot and F/E, just got to locate the rest of the crew!!!
